ATTENTION: The core bits is 5/8-11 thread, it is more popular in America Area.

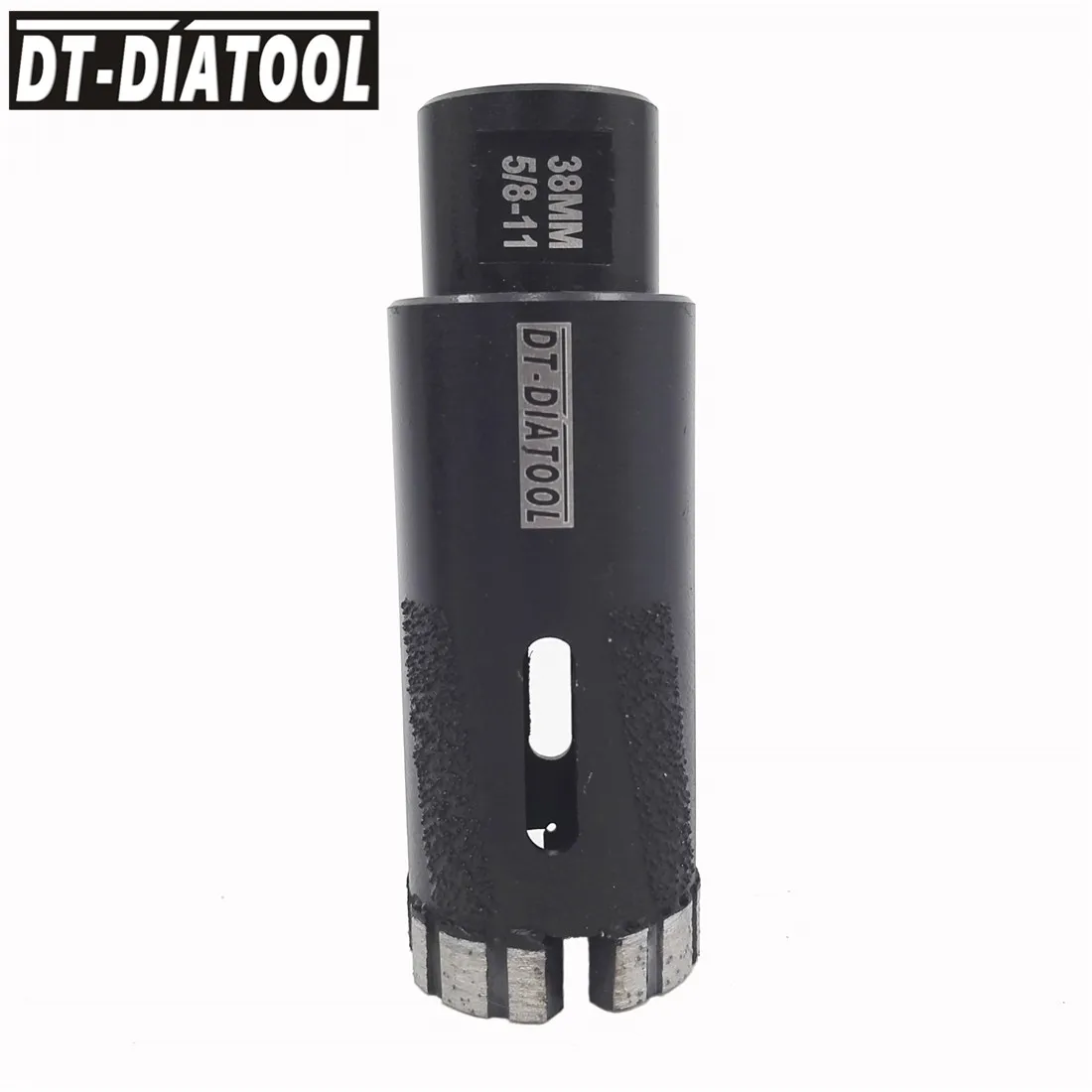

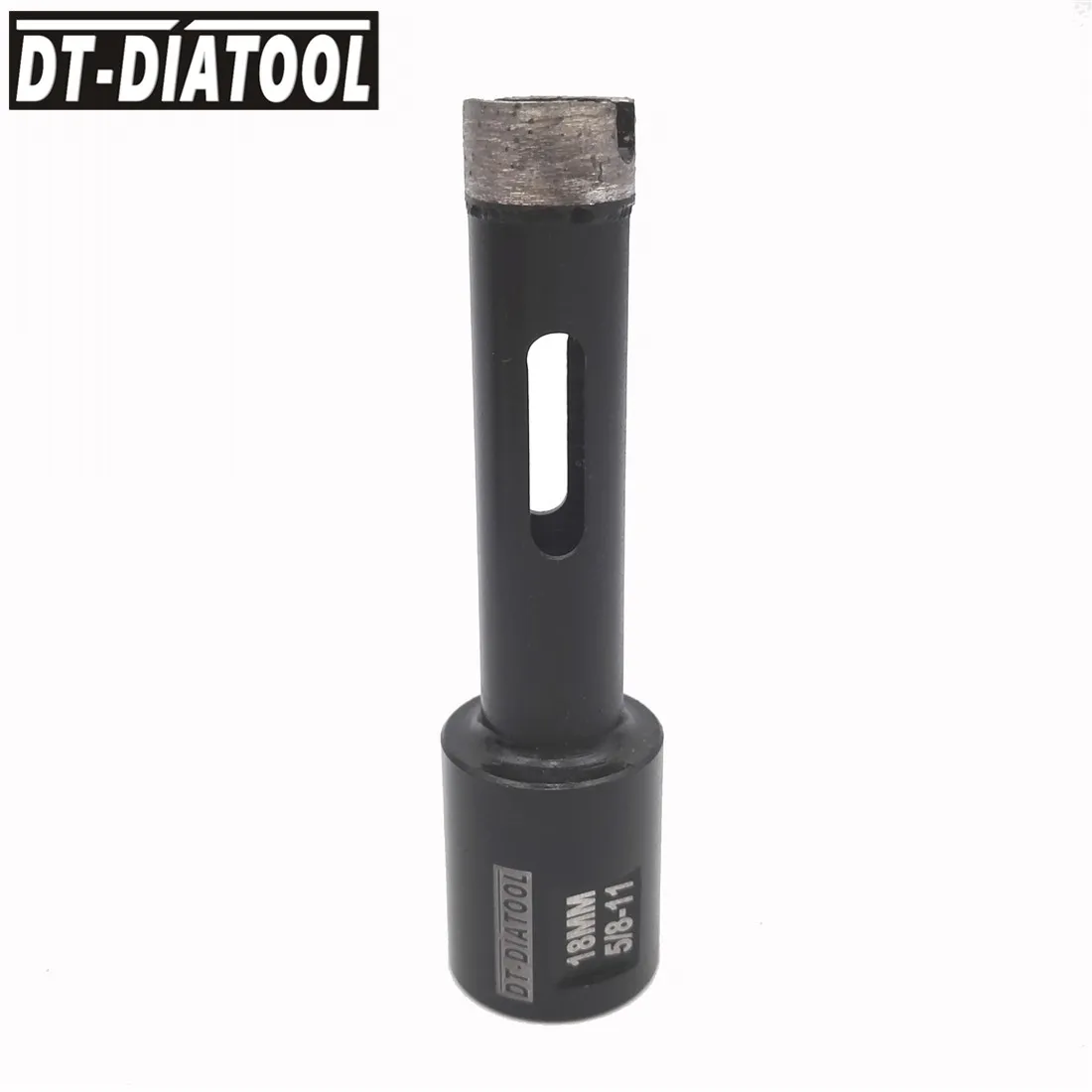

PRODUCT NAME:1pc Laser Welded Diamond Drilling Core Bits (DRY)
QUANTITY:1pc only (please choose the right size)
SPECIFICATION:Diameter: 20MM, 25MM (crown segments), 32MM 35MM 38MM 45MM 50MM 58MM 65MM
Total length: 4″ /(102-105mm), Thread: 5/8-11(Make sure it can be installed on your machine); Grits #25/35
FEATURE:
- 1. Dry or Wet – wet drilling will greatly prolong the segment life
-
2. Drilling hard granite marble, nature stone, engineering stone, concrete
-
3. SUPREME Grade and Special bond matrix extends drilling life and improve the working efficiency
-
4. Laser welded technology avoid segments off when dry working
-
5. Crown segments for 20MM and 25MM, Turbo segments provide aggressive drilling speed (32mm & above)
-
6. Ideal for drilling the faucet mounting holes in stone countertops, plumbing lines in showers and vanities
-
7. Vacuum brazed side protection offers clean cut & steel core protection
Operation tips:
1. Fix it on angle grinder tightly and rightly
2. Turn on the angle grinder and let the core bits rotating in the air to check if there is balance problem.
3. Hold the machine very steadily and give gentle pressure
4. Start drilling as per following instructions:
1) place the drill at a 30 degree angle, it will help to position
2) When Drilling the material till the hole start to form
3) Bring the drill up into upright position slowly then keep drilling vertically.
5. Do not give too much pressure or sway the core bits when working.
================THE END================
available diameter: 6mm, 8mm, 10mm, 12mm, 14mm, 18mm, 20mm, 25mm, 32mm, 35mm, 38mm, 45mm, 50mm, 58mm, 65mmm, 75mm, 102mm
Ref. Brand: This product is marked our “DT-DIATOOL” brand name. If you need these diamond disc without our brand, please leave us message. we could send you products without brand. We also provide brand-customizing service (If you order more 20pcs, we could mark your brand name on these products)
Note:
-
Please allow 1-3mm errors due to manual measurement
